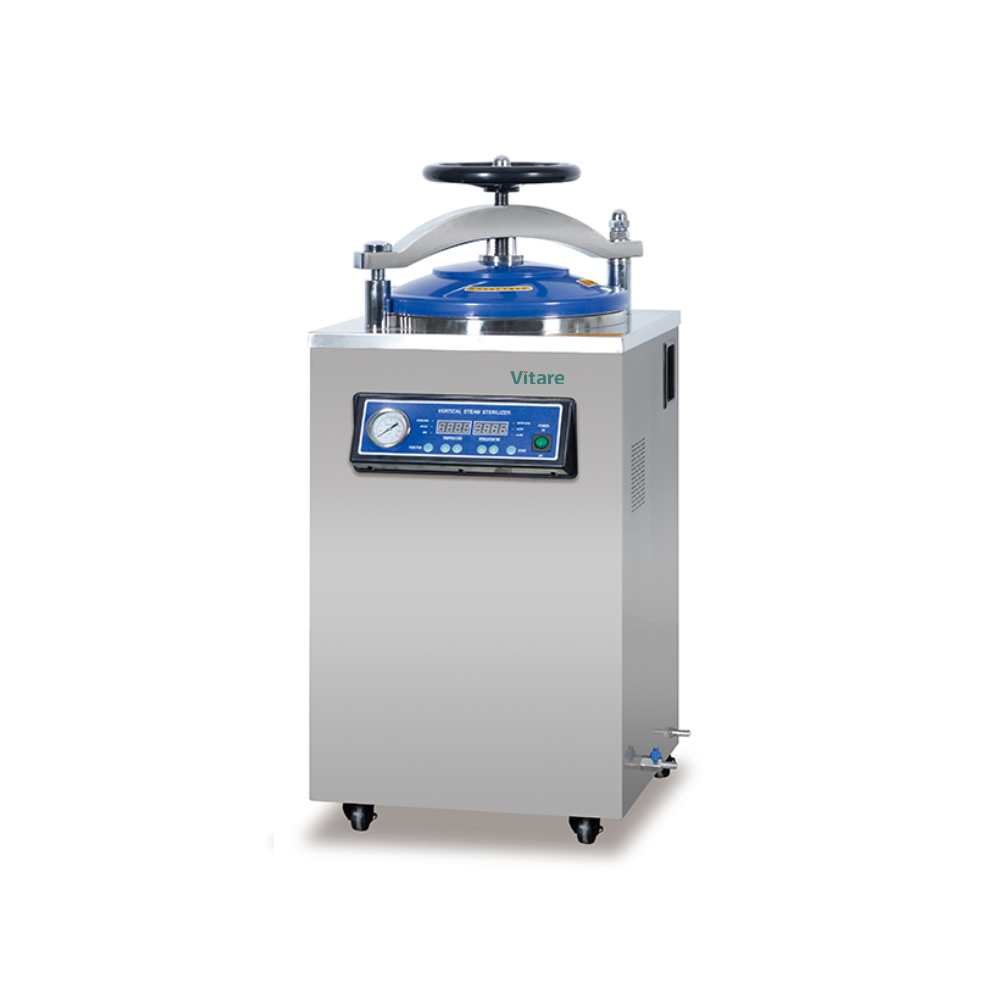

SteriTech B Digital Displayed Automatic Type
◆ Hand wheel translation and quick opening structure.
◆ High quality stainless steel material.
◆ Microcomputer automatic control, arbitrary setting sterilization parameters.
◆ Safety interlocking device.
◆ Digital display and Touch buttons.
◆ Standard test interface.
◆ Self-expanding seal.
◆ With automatic protection function:over temperature protection; over pressure self discharge protection;
low water level protection; anti dry burning.
◆ With stainless steel bucket or basket.
◆ Buzzer reminder after sterilization, automatic stop.
◆ Automatic discharge of cold air, automatic steam exhaust after sterilization.
◆ Optional external printer.
◆ Optional automatic water.
◆ SPECIFICATIONS
|
Technical parameter/Model |
STB-35B |
STB-50B |
STB-75B |
STB-100B |
|---|---|---|---|---|
|
Volume |
35L |
50L |
75L |
100L |
|
Power |
3.5kw |
3.5kw |
4.5kw |
4.5w |
|
Voltage |
AC 220V、50HZ |
|||
|
Design pressure |
0.25MPa |
|||
|
Design temperature |
139℃ |
|||
|
Rated working pressure |
0.22MPa |
|||
|
Rated working temperature |
134℃ |
|||
|
Sterilization temperature setting range |
116℃-134℃ |
|||
|
Sterilization time setting range |
4 - 120 min |
|||
|
Drying time setting range |
0-240 min |
|||
|
Chamber volume |
Ø350x400 |
Ø350x525 |
Ø400x625 |
Ø450x650 |
|
Bucket dimension |
Ø330x320 |
Ø330x460 |
Ø380x560 |
Ø420x540 |
|
Basket dimension |
Ø320x350 |
Ø320x240x2 |
Ø360x280x2 |
Ø410x300x2 |
|
Outer dimension |
480x480x1000 |
480x480x1120 |
525x525x1190 |
550x550x1250 |
|
Packing size (L x W x H) |
580x630x1130 |
580x630x1230 |
630x680x1290 |
690x650x1410 |
|
Gross/net weight |
79/58kg |
106/80kg |
120/90kg |
133/106kg |
