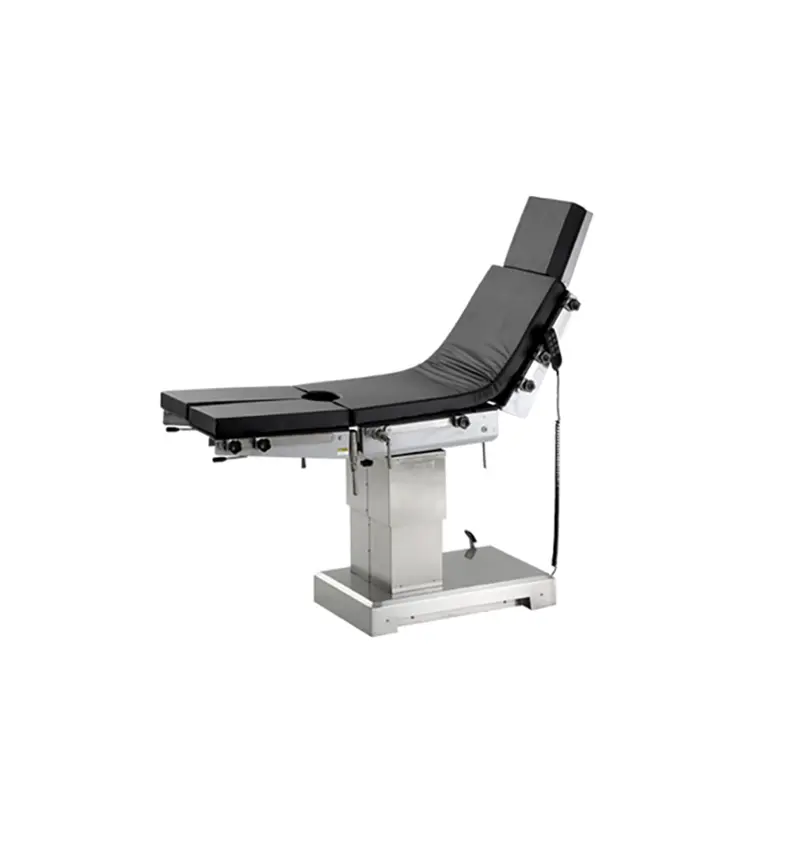

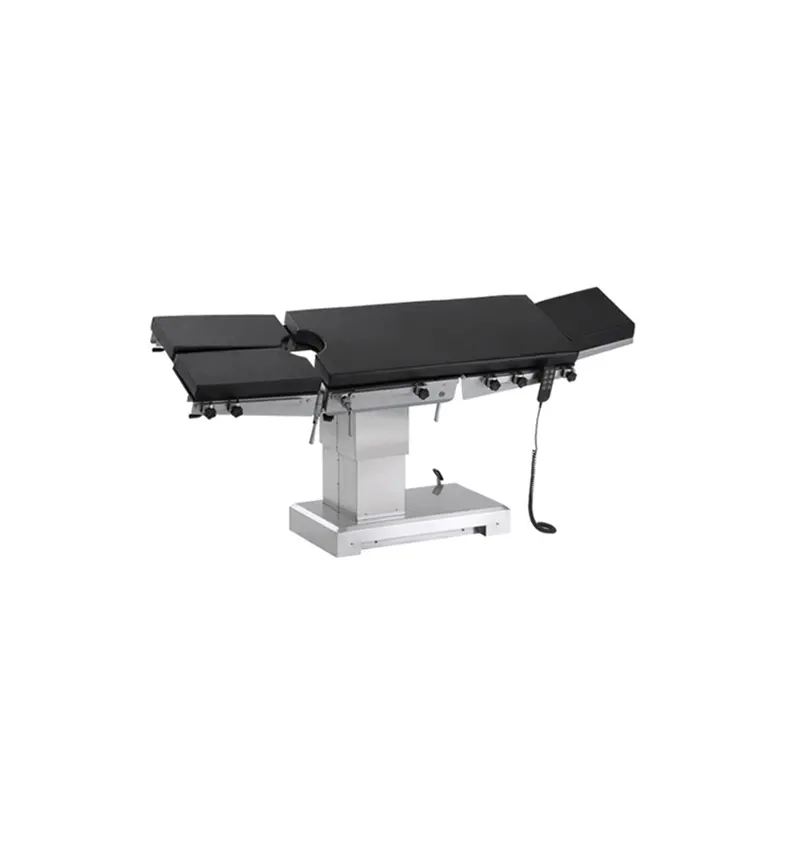

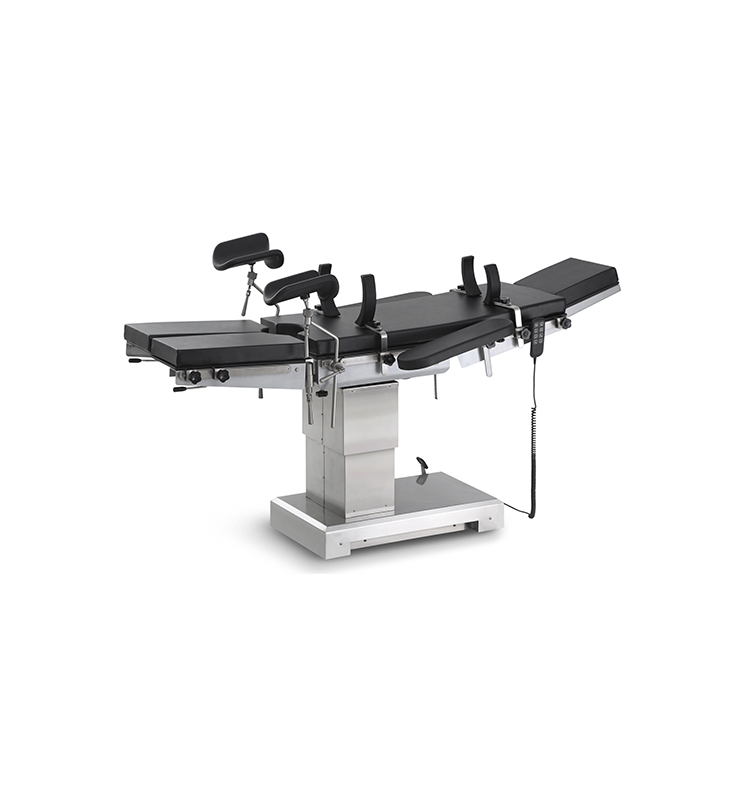

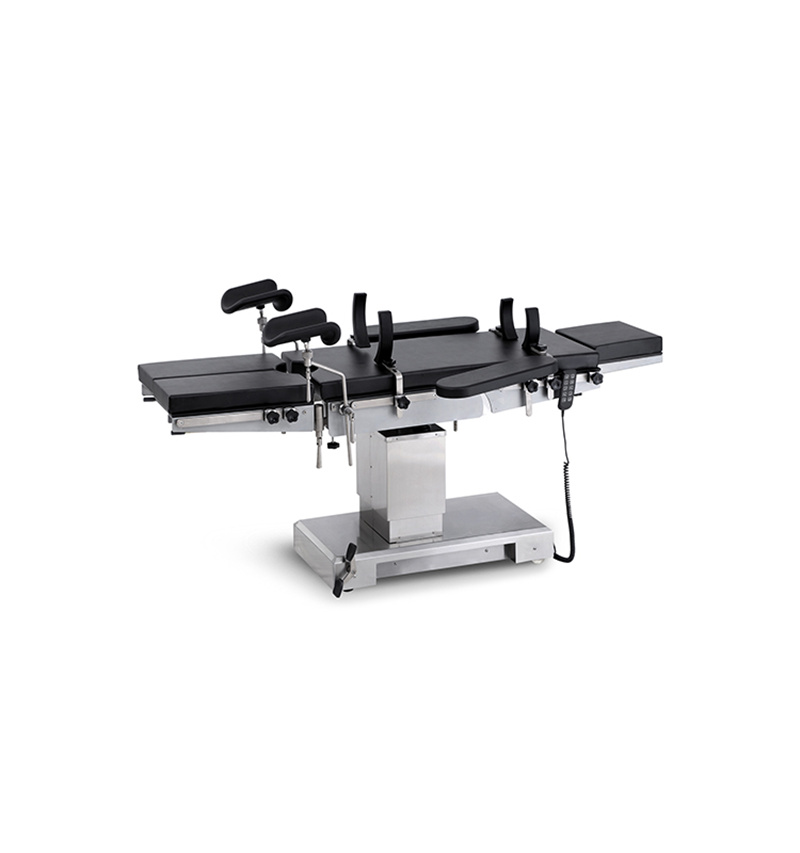

VOT-90A/VOT90B Electric Hydraulic Operating Table
VOT-90A/ VOT-90B is electric operating table, which all functions are controlled by imported motor.
VOT-90A/ VOT-90B is electric operating table, which all functions are controlled by imported motor.
◆ Memory sponge mattress;
◆ Big capacity battery for 50-80 times surgery;
◆ The table lowest height is 550mm.It can be connected with skull clamp,which can be used for Ophthalmology and aural sursery.
◆ MAIN SPECIFICATIONS
| Model | VOT-90A | VOT-90B | |
| Length /Width | 2000mm/500mm | 2020mm/500mm | |
| Height | 750mm-1000mm | 550mm-800mm | |
|
Trendelenburg/Revers Trendelengurg |
≥25°/≥25° |
≥25°/≥20° | |
|
Lateral Tilt |
≥20°/≥20° | ||
|
Head Section Up/Down |
≥45°/≥90° | ≥30°/≥90° | |
|
Leg Section Up/Down/Outside |
≥15°≥90°/≥90° | ||
|
Back Section Up/Down |
≥75°/≥35° | ≥45°/≥20° | |
|
Sliding Distance |
≥350mm | -- | |
|
Kidney Bridge Lift |
110mm |
80mm | |
|
Load Capation |
250kg |
||
| Package (Wooden case) | 141x78x97cm | 141x78x97cm | |
| Gross Weight | 204kg | 204kg | |
