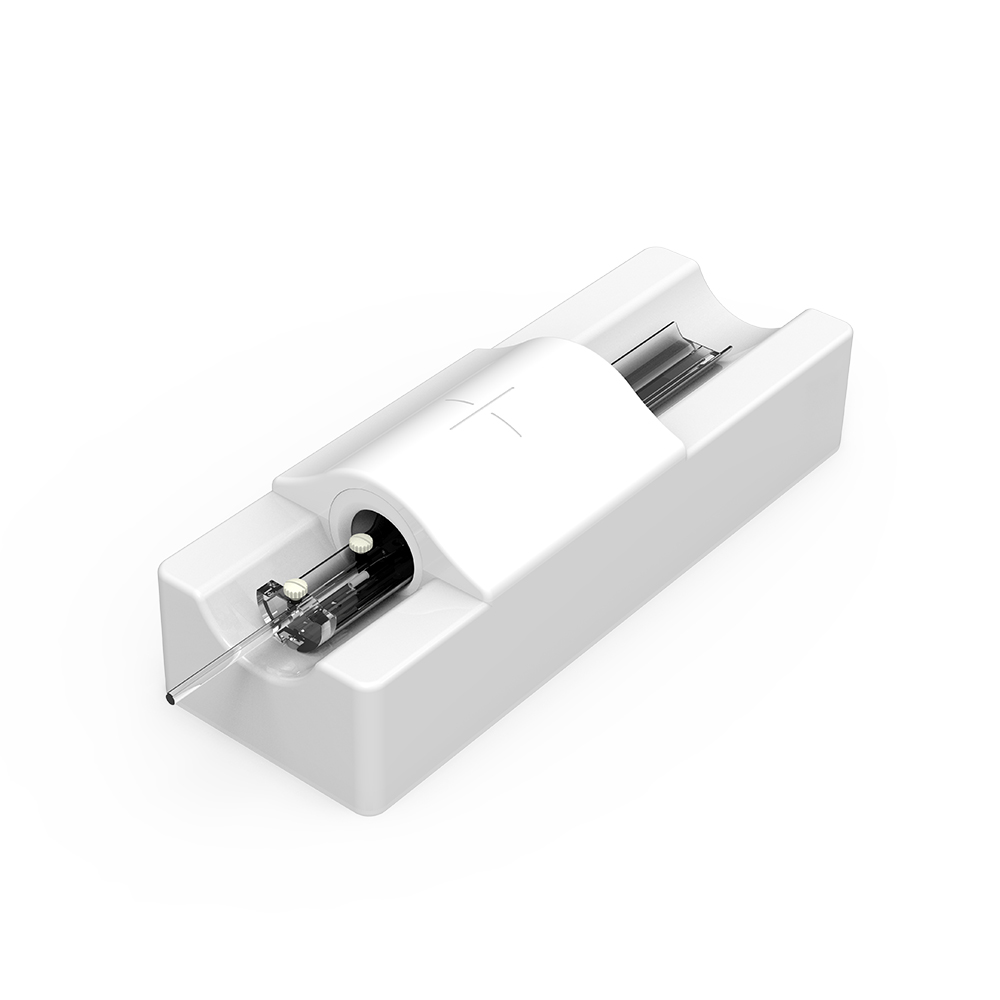

◆ Designed for mouse imaging.

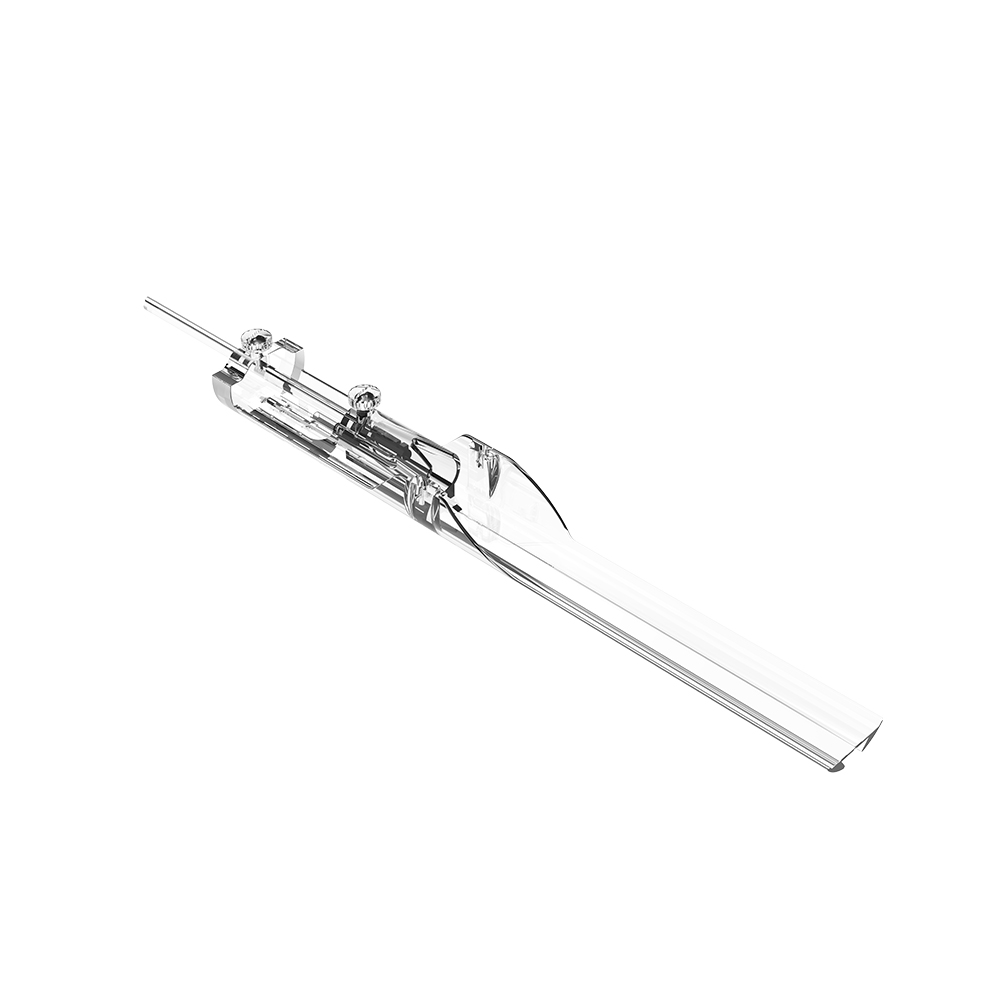

◆ Patented design-Special bracket for small animals.

◆ Number of supported channels：4/8/12/16ch.

◆ Small, medium and large diameter, suitable for different weight (10g-1000g) of animal applications.

◆  Provides high resolution anatomical images at uniform submillimeter level under small FOV.

◆ Compatible with parallel capture function, obtains good DWI, BOLD and other functional images.

◆ Animal fixed loading in reasonable design, convenient to put and fixed, and ensure the stability of long time experiment.

◆ FOV:

3cm: F/H:43mm L/R:30mm AP:30mm

6cm: F/H:75mm L/R:60mm AP:60mm

7cm: F/H:90mm L/R:75mm AP:75mm

◆ SPECIFICATIONS

Dimensions & Net weight:

3cm: 11" Lx4.33"Wx 4.72" H, 0.5kg;

5cm: 14.96"Lx4.33Wx5.12” H, 0.8kg;

7cm 16.14"Lx5.12"Wx5.9H, 1.2kg.

◆ BROCHURE
