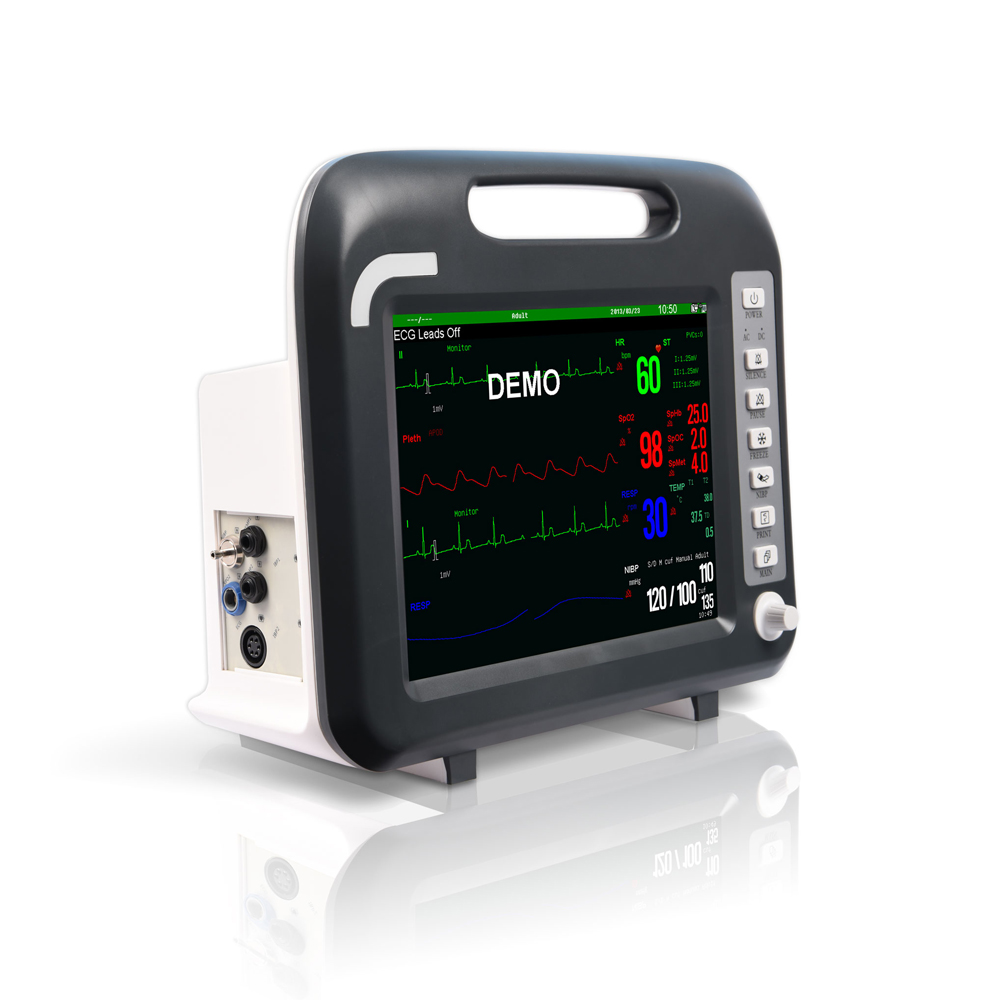

◆ 12.1" color TFT display, high resolution 800x600 dpi;

◆ Separated para board: ECG, NlBP, SpO2 board;

◆ Full touch-screen enables intuitive operation by clicking one the specifc parameters or the waveform in real time, standard configuration includes the navigation knob;

◆ Real time S-T segment analysis, and ARR analysis;

◆ Sp02 Pitch Tone Variation and Drug Dose Calculation;

◆ Parameter waveform and characters color selectable;

◆ Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic

◆ Standby mode for Energy saving and suspend monitoring;

◆ 7-lead ECG waveforms display in phase;

◆ Internal storage: 3600s full-disclosure waveform review;;

◆ External storage: SD card slot enables memory extension;

◆ Built-in rechargeable lithium battery, and battery volume checking.

◆ Efficient resistance to interference of defibrillator and HF knife;

◆ Networking capacity and TCP/iP networking platform enable abundant future upgrade;

◆ Time delay switch-off function keep the monitor data restart monitor.

◆ TECHNICAL SPECIFICATIONS

◆ Sweep speed:12.5mm/s,25mm/s,50mm/s

◆ Indicator: Power/batteryindicator light

◆ Battery: Rechargeable lead acid cell, 12v/4AHMax.24H charging, 4H continue working

◆ Alarm: adjustable High, Medium and Low

◆ Networking: Connected to CMS

◆ TCP/IP netting platform

◆ Trend:

parameters graphic and tabular trends:5s/piece,8 hours;

1min/piece, 168 hours (24hourx7days);

5min/piece, 1000 hours,

◆ Storage:

NIBP:1000 groups;

Alarm: 200 groups;

Full disclosure waveforms: 1 hour

◆ Standard parameters: 5-lead ECG,SpO2(F-5), NIBP, RESP, TEMP, PR, HR;

◆ Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-1BP Nellcor/Masimo SpO2, BlS, Phaisein / Respironics Multi-gas, 1CG/CO

◆ STANDARD PARAMETERS

◆ ECG:

Lead mode: 5-ead(R,L,F,N,C)

Lead selection: l, ll, lll, avR, avL,avF, V

Waveform: 3 and 7channel selectable

Gain selection: 0.5mm/mv, 1mm/mv, 2mm/mv

Sweep speed: 12.5mm/s; 25mm/s; 50mm/s

Heart rate range: Adult: 15~300bpm; Neonate:/pediatric:15~350bpm

Accuracy: +l bpm or +1%,whichecer is greater

Resolution: 1bpm

Filter: surgery mode: 1~20Hz

Monitor model: 0.5~40Hz

Diagnostic mode: 0.05~130Hz

Scaling signal: 1mv,+3%

Protection: withstand 4000VAC/50 voltage

isolation against electrosurgical

interference and defibrillation

Alarm range: 15~350bpm

S-T segment detecton:

Measurement range: 2.0mV~+2.0mV

Alarm Range: -2.0mV~+2.0mV

Accuracy: -0.8mV ~+0.8MV

Error: +0.02Mv

Arrhythmia analysis: YES

◆ SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Alarm range: 0~100%

Pluse Rate: range:20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%,whichever is greater

◆ NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic/continuous

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement range:

Range of Systolic pressure:

Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure:

Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure:

Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic.Diastolic,Mean

◆ RESP

Method: Thoracic impedance

Measurement range: Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm

◆ TEMP

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution: 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

◆ Optional Parameters

Recorder

Build-in, thermal array

Plethysmogram caveform: 2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type: Frozen waveform record

NlBP recall record  Trend table record  Alarm record  Fixed -time record
