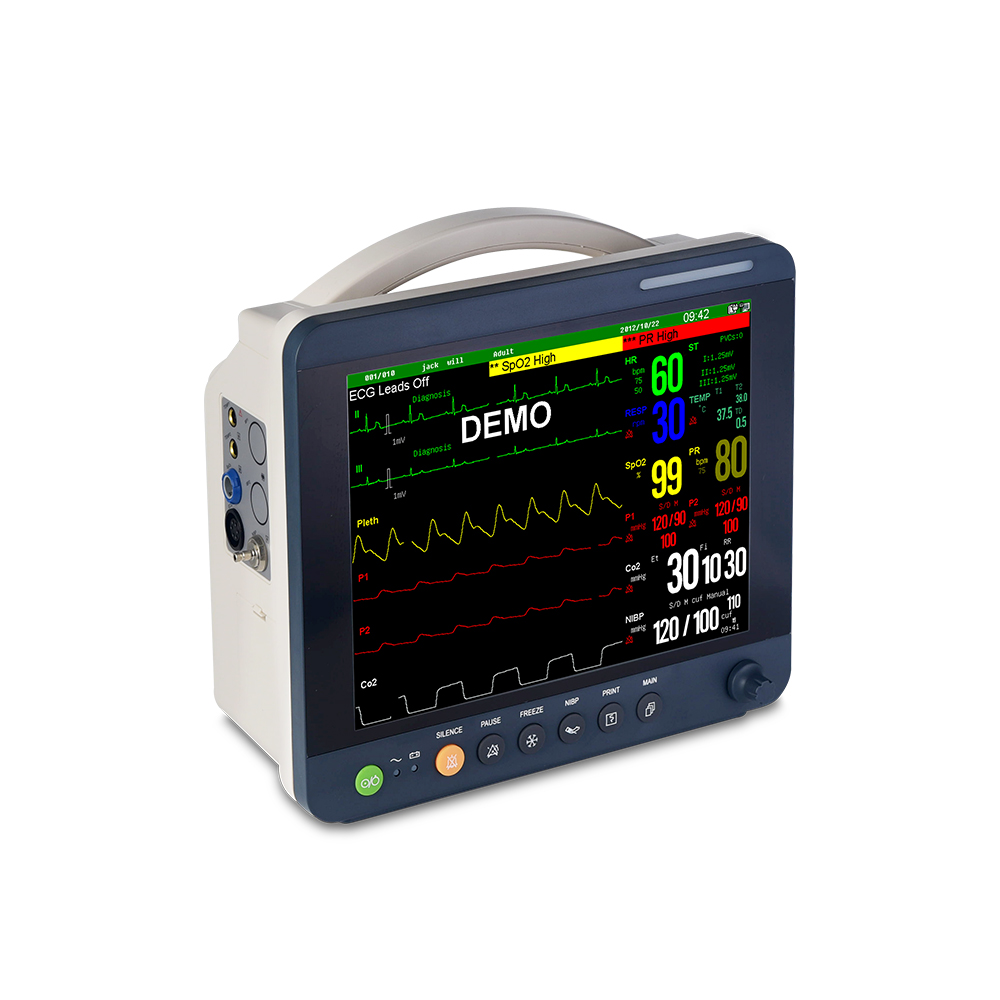

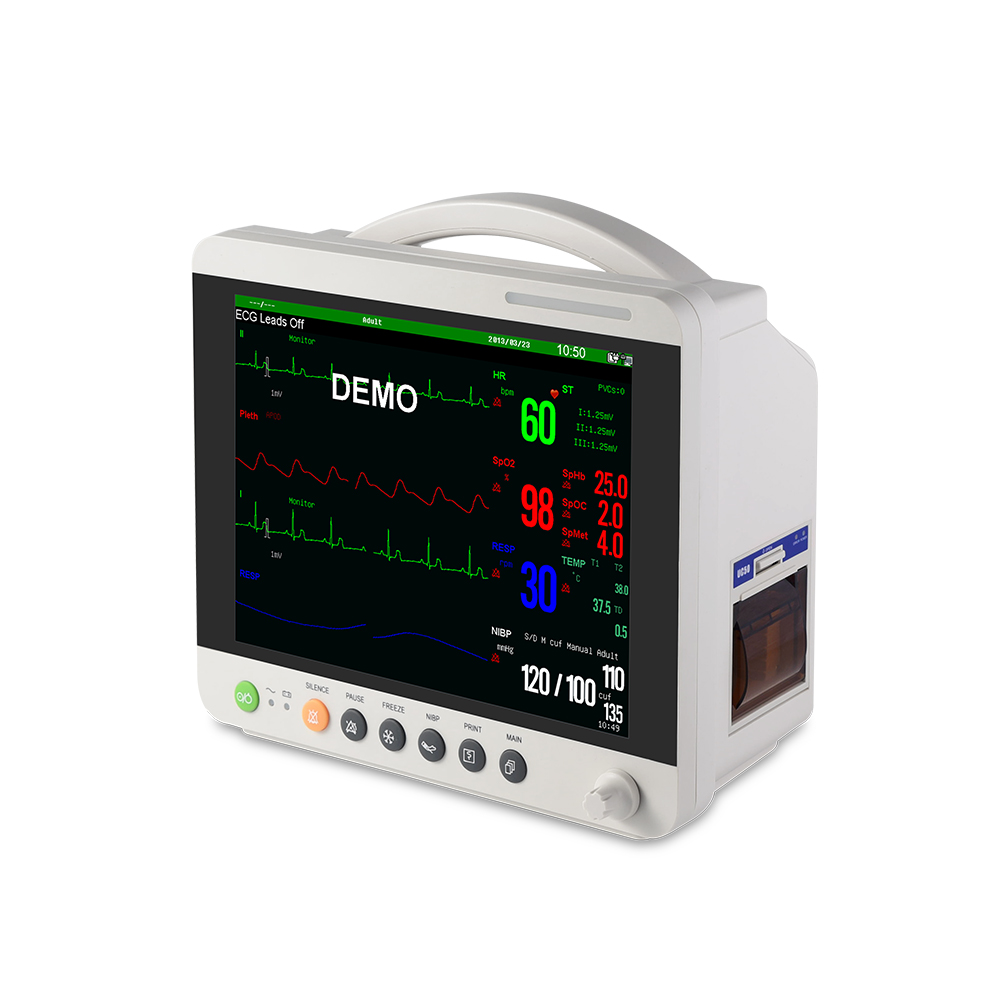

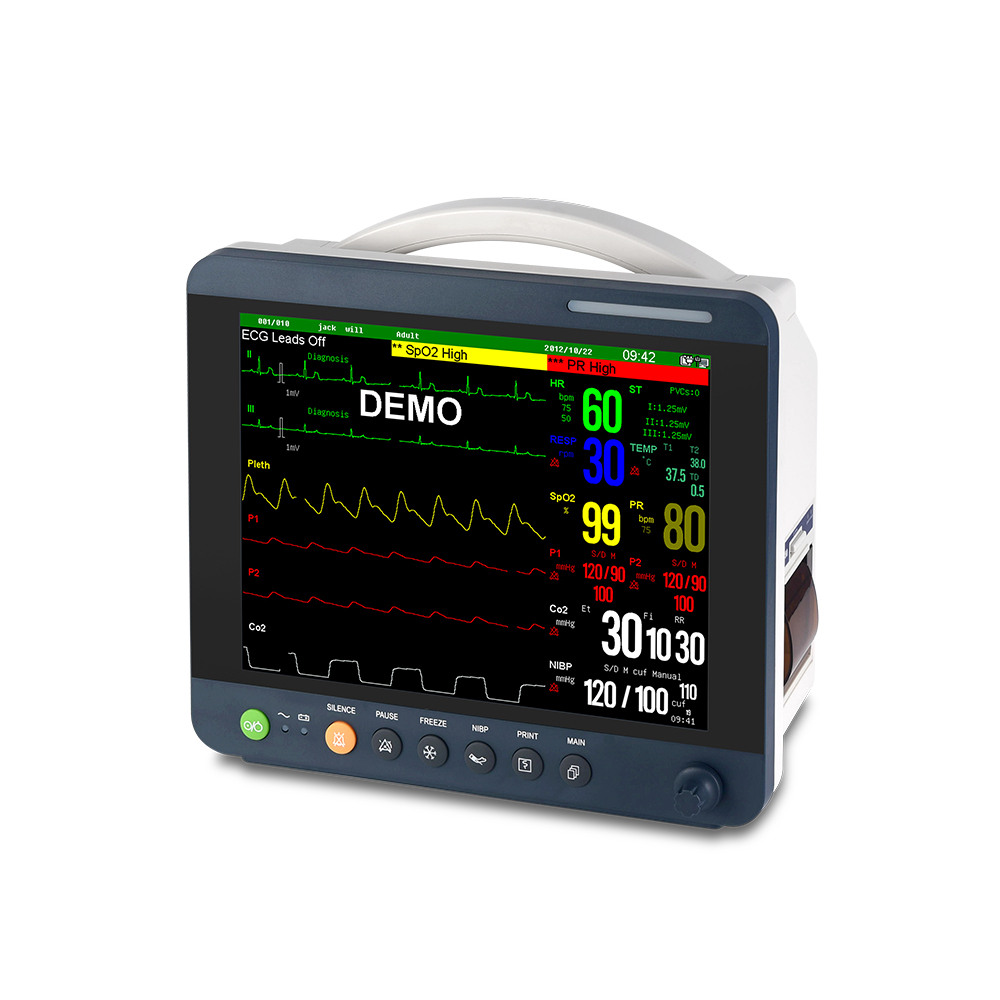

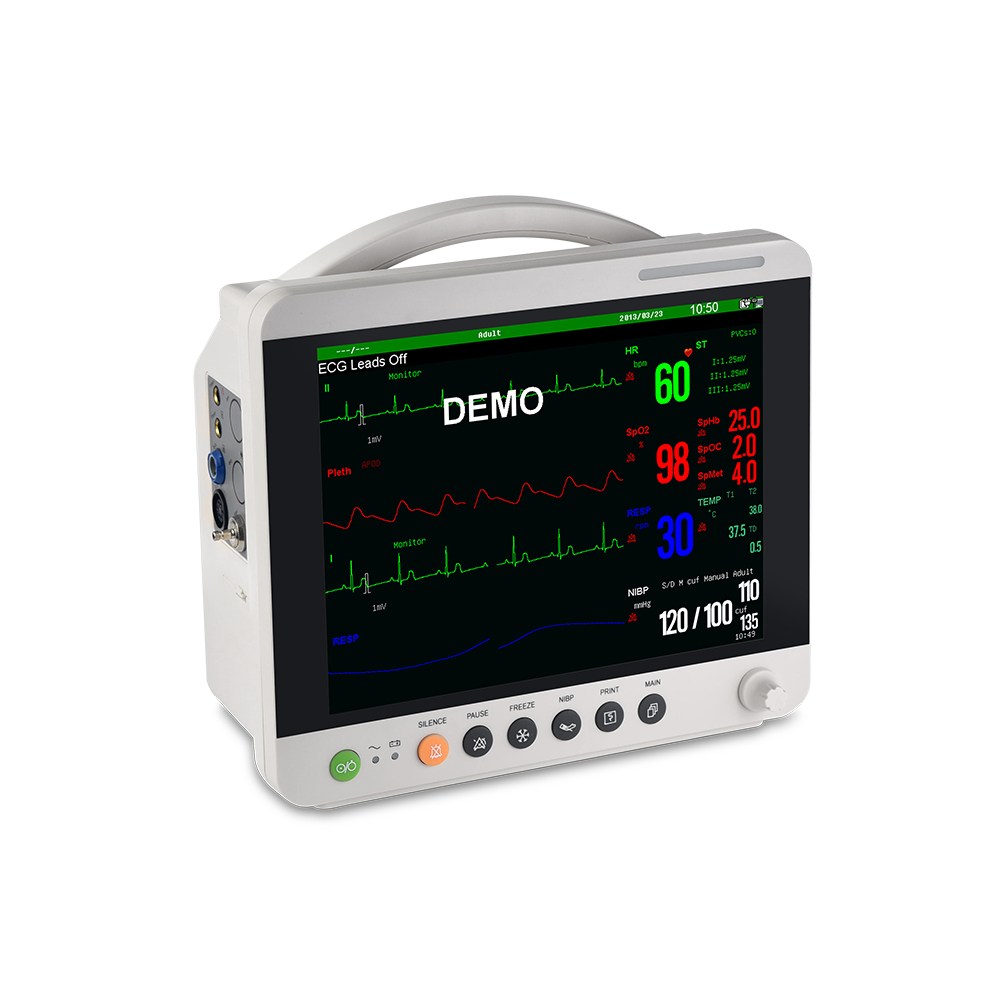

◆ 12.1" color TFT display, high resolution 800x600 dpi;

◆ Full touch-screen enables intuitive operation by clicking one the specifc parameters or the waveform in real time, standard configuration includes the navigation knob;

◆ Real time S-T segment analysis, and ARR analysis;

◆ Sp02 Pitch Tone Variation and Drug Dose Calculation;

◆ Parameter waveform and characters color selectable;

◆ Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic;

◆ Internal storage: 3600s full-disclosure waveform review;

◆ 7-lead ECG waveforms display in phase;

◆ Capture dynamic waveforms;

◆ Built-in rechargeable lithium battery, and battery volume checking.

◆ AC power checking;

◆ Efficient resistance to interference of defibrillator and HF knife;

◆ SINNOR F-6 SpO2 technology, VS NELLCOR accuracy;

◆ Networking capacity and TCP/iP networking platform enable abundant future upgrade;

◆ Time delay switch-off function keep the monitor data restart monitor;

◆ Complete and flexible mounting solution for transportation and in-patient monitoring.

◆ TECHNICAL SPECIFICATIONS

◆ Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

◆ Trace: 9 waveforms (7 ECG, 1 SPO2 and 1 RESP)

Sweep speed:12.5mm/s,25mm/s,50mm/s

◆ Indicator: Power/batteryindicator light ; QRS beep and alarm sound

◆ Battery: Rechargeable lead acid cell, 12v/4AH, Max.24H for charging, 4H for continue working

◆ Storage:

NIBP:1000 groups;

Alarm: 200 groups;

Full disclosure waveforms: 3600S

◆ Alarm: User-adjustable High, Medium and Low limit 3-level

Audible and visual alarm

◆ Networking: Connected to central monitoring system; TCP/IP netting platform

◆ Recorder: Build-in, thermal array

Plethysmogram caveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

◆ Recording type: Frozen waveform record; NIBP recall record; Trend table record; Alarm record; Fixed -time record

◆ Standard 6 parameters: 5-lead ECG,SpO2(F-5), NIBP, RESP, TEMP, PR, HR;

◆ Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP, 4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO

◆ STANDARD PARAMETERS

◆ ECG:

Lead mode: 5-ead(R,L,F,N,C)

Lead selection: l, ll, lll, avR, avL,avF, V

Waveform: 3 and 7channel selectable

Gain selection: 0.5mm/mv, 1mm/mv, 2mm/mv

Sweep speed: 12.5mm/s; 25mm/s; 50mm/s

Heart rate range: Adult: 15~300bpm; Neonate:/pediatric:15~350bpm

Accuracy: +l bpm or +1%,whichecer is greater

Resolution: 1bpm

Filter: surgery mode: 1~20Hz

Monitor model: 0.5~40Hz

Diagnostic mode: 0.05~130Hz

Scaling signal: 1mv,+3%

Protection: withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation

Alarm range: 15~350bpm

Measurement range: 2.0mV~+2.0mV

Alarm Range: -2.0mV~+2.0mV

Accuracy: -0.8mV ~+0.8MV

Error: +0.02Mv

Arrhythmia analysis: YES

◆ SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Alarm range: 0~100%

Pluse Rate: range:20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%,whichever is greater

◆ NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic/continuous

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement range:

Range of Systolic pressure:

Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure:

Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure:

Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic.Diastolic,Mean

◆ RESP

Method: Thoracic impedance

Measurement range: Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: ±2rpm

◆ TEMP

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution: 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

◆ Optional Parameters

FHR

Transducer: Multi-crystal, Pulsed Doppler

Measurement range: 50~210 BPM

Working frequency: 1 MHz

Strength: <5mW/cm2

Signal processing: special DSP system and modern recognization.

Resolution: 1BPM

Accuracy: ±1BPM

Alarm Range: High: 160,170,180,190 BPM,

Low: 100,110,120 BPM

FM

Manual button marking,

automatic FM identifying function

TOCO Measuring

Transducer: External pressure transducer

Measurement range: 0~100 units

Resolution: 1rpm

Accuracy: ±2 rpm

IBP

Channel: 2 channels

Range: -50-300mmHg

Resolution: 1mmHg

Accuracy: ±4mmHg(±4%)

Unit: mmHg, Kpa

Converter Sensitivity: 5mV/V/mmHg

Transducer sites: ART/PA/CVP/LAP/RAP/ICP

EtCO2 (Sidestream CO2)

Measurement range: 0~99mmHg

Accuracy: +2mmHg (0~40mmHg)

Sampling Range: 100ml/min

Sampling rate accuracy: 15%

Respiration rate: 0~120rmp

Respiration accuracy: +2rmp (0~70rmp)

+5rmp (>70rmp)

Respiration time: <240msec (10% to 90%)

Delay time: <2s

EtCO2 (Mainstream CO2)

Method: Infrared Spectrum

Range: 0.0-10% (0~76%)

Resolution: 1mmHg (0.1%)

Accuracy: ＜5%(±4.0 mmHg)

Or＜10%(of Readings)

Recorder:

Build-in, thermal array

Plethysmogram caveform: 2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type: Frozen waveform record; NIBP recall record

Trend table record; Alarm record; Fixed -time record

Miscellaneous

Safety:  Safety level: Class I, type CF

Dimension and Weight

Dimension: 37*21*43CM

G.W.: 5.5KGS

Operation Environment

Temperature: Working 0~+40℃

Transportation and storage –20~+60℃

Humidity: working≤85%

Transportation and storage≤93%

Power: AC 100-240, 50/60Hz

Patient range: Neonate, pediatric, and adult patients

◆ Accessories supplies

5 lead ECG cable

1 spo2 probes

1 NIBP probe

1 temp probe

1 ground connecting liner

Chest electrode (10pcs/set)
