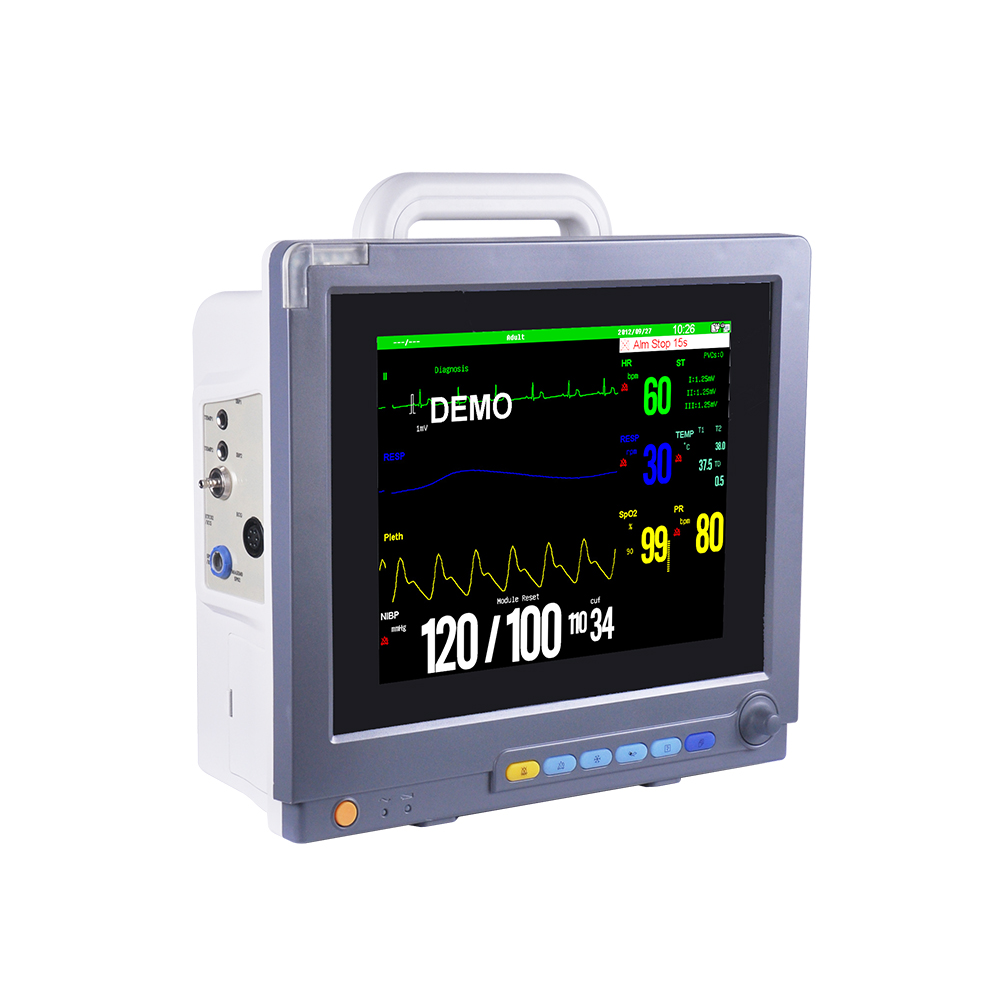

◆ 15" color TFT display, high resolution 1024x768 dpi;

◆ Separated para board: ECG, NIBP,SpO2 board;

◆ Full touch-screen enables intuitive operation by clicking one the specific parameters or the waveform in real time, standard configuration includes the navigation knob.

◆ Real time S-T segment analysis, and ARR analysis;

◆ Sp02 Pitch Tone Variation and Drug Dose Calculation;

◆ Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic

◆ Standby mode for Energy saving and suspend monitoring;

◆ 7-lead ECG waveforms display in phase;

◆ Capture dynamic waveforms;

◆ Built-in rechargeable lithium battery, and battery volume checking.

◆ Efficient resistance to interference of defibrillator and HF knife;

◆ SINNOR F-6 SpO2 workable for neonate;

◆ TCP/IP networking platform enable abundant future upgrade

◆ Complete and flexible mounting solution for transportation and in-patient monitoring.

◆ Standard parameters: 5-lead ECG,SpO2(F-5), NIBP,RESP, TEMP, PR;

◆ Optional: Touch Screen, Thermal Recorder, 3/12-leadECG, 2/4-BP, EtC02, SpO2(F-6), Multi-gas, Cardiac Output.

◆ STANDARD PARAMETERS

◆ ECG:

Lead mode: 3/5-ead(R,L,F,N,C)

Lead selection: l, ll, lll, avR, avL,avF, V

Waveform: 3 and 7channel selectable

Gain selection: 0.5mm/mv, 1mm/mv, 2mm/mv

Sweep speed: 12.5mm/s; 25mm/s; 50mm/s

Heart rate range: Adult: 15~300bpm; Neonate:/pediatric:15~350bpm

Accuracy: +l bpm or +1%,whichecer is greater

Resolution: 1bpm

Filter: surgery mode: 1~20Hz

Monitor model: 0.5~40Hz

Diagnostic mode: 0.05~130Hz

Scaling signal: 1mv,+3%

Protection: withstand 4000VAC/50 voltage

isolation against electrosurgical

interference and defibrillation

Alarm range: 15~350bpm

S-T segment detecton:

Measurement range: 2.0mV~+2.0mV

Alarm Range: -2.0mV~ +2.0mV

Accuracy: -0.8mV ~+0.8Mv

Error: +0.02Mv

Arrhythmia analysis: YES

◆ SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Alarm range: 0~100%

Pluse Rate: range:20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%,whichever is greater

◆ NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic/continuous

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement range:

Range of Systolic pressure:

Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure:

Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure:

Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic.Diastolic,Mean

◆ RESP

Method: Thoracic impedance

Measurement range: Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm

◆ TEMP

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution: 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

◆ Optional Parameters

Recorder

Build-in, thermal array

Plethysmogram caveform: 2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type: Frozen waveform record

NlBP recall record  Trend table record  Alarm record  Fixed -time record

IBP (invasive blood pressure)

  IBP Waveform: 2-Channel

Max 8 channels

Measurement Range: -50-350mmHg

Resolution: 1mmHg

Unit: mmHg, kPa

Accuracy:

Dynamc: ±4mmHg or 4%, whichever is greater

Sensitivity of transducer: 5 uV/V/mmHg,+2%

Impedance of transducer: 300~3000 0hm

Transducer sites: Arterial Pressure(ART) /Pulmonary Artery Pressure(PA)

Left Atrium Pressure(LAP)/Right Atrium Pressure(RAP)

Central Venous Pressure(CVP) /Intracranial PRESSURE(ICP)

P1/P2

Selection of measurement range:

ART:0~+ 350mmHg

PA:-10~+ 120mmHg

CVP/RAP/LAP/ICP:-10~+40mmHg

P1/P2:-50~+ 360mmHg
